Product Description

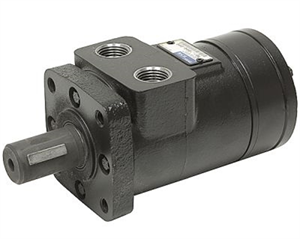

Low Speed High Torque Hydraulic Motor. 1" Shaft, C/W, Woodruff Key. Small volume, spool valve gerolor gear set, economical type motor. Direction of shaft rotation and speed can be controlled easily and smoothly.


Displacement:
50CC
3.0 CU

Flow (GPM):
Cont. 15
Int. 20

Speed (RPM):
Cont. 1100
Int. 1350

Pressure (PSI):
Cont. 2030
Int. 2537
Peak 3262

Torque (IN-LBS):
Cont. 734
Int. 955
Peak 1014

Ports: 1/2" NPT

Weight: 13.0 Lbs

Manufacturer: Custom (Hydrolico)

Ref. Numbers:
Charlynn: 101-1001 Danfoss: 151-2121
