Product Description

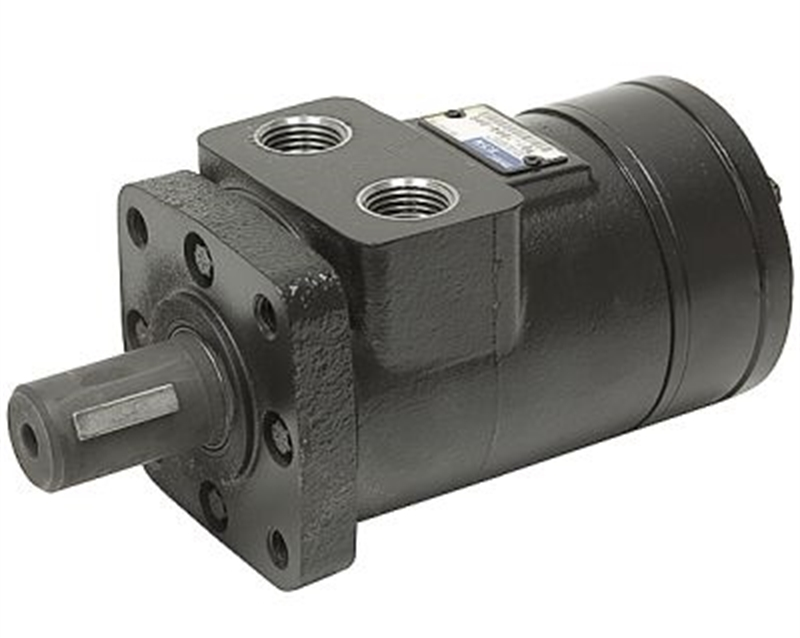

Low Speed High Torque Hydraulic Motor. 1" Shaft, C/W, Woodruff Key. Small volume, spool valve gerolor gear set, economical type motor. Direction of shaft rotation and speed can be controlled easily and smoothly.


Displacement:
80CC
4.8 CU

Flow (GPM):
Cont. 15
Int. 20

Speed (RPM):
Cont. 750
Int. 900

Pressure (PSI):
Cont. 2030
Int. 2537
Peak 3262

Torque (IN-LBS):
Cont. 1140
Int. 1503
Peak 1630

Ports: 1/2" NPT

Weight: 13.0 Lbs

Manufacturer: Custom (Hydrolico)

Ref. Numbers:
Charlynn: 101-1002 Danfoss: 151-2122
