Product Description

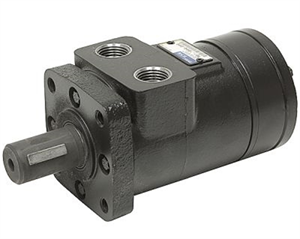

Low Speed High Torque Hydraulic Motor. 1" Shaft, C/W, Woodruff Key. Small volume, spool valve gerolor gear set, economical type motor. Direction of shaft rotation and speed can be controlled easily and smoothly.


Displacement:
250CC
15.2CU

Flow (GPM):
Cont. 15
Int. 20

Speed (RPM):
Cont. 220
Int. 270

Pressure (PSI):
Cont. 1595
Int. 2030
Peak 2610

Torque (IN-LBS):
Cont. 3182
Int. 4022
Peak 4113

Ports: 1/2" NPT

Weight: 16.0 Lbs

Manufacturer: Custom (Hydrolico)

Ref. Numbers:
Charlynn: 101-1006, Danfoss: 151-2127
