Product Description

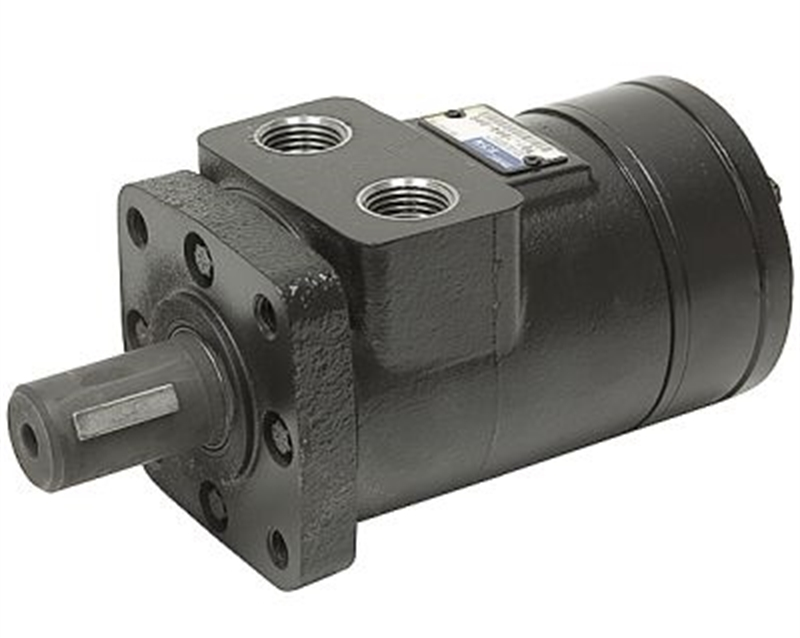

Low Speed High Torque Hydraulic Motor. 1" Shaft, C/W, Woodruff Key. Small volume, spool valve gerolor gear set, economical type motor. Direction of shaft rotation and speed can be controlled easily and smoothly.


Displacement:
315CC
19.2CU

Flow (GPM):
Cont. 15
Int. 20

Speed (RPM):
Cont. 189
Int. 236

Pressure (PSI):
Cont. 1305
Int. 2030
Peak 2320

Torque (IN-LBS):
Cont. 3589
Int. 4464
Peak 4885

Ports: 1/2" NPT

Weight: 16.0 Lbs

Manufacturer: Custom (Hydrolico)

Ref. Numbers:
Charlynn: 101-1007, Danfoss: 151-2128
