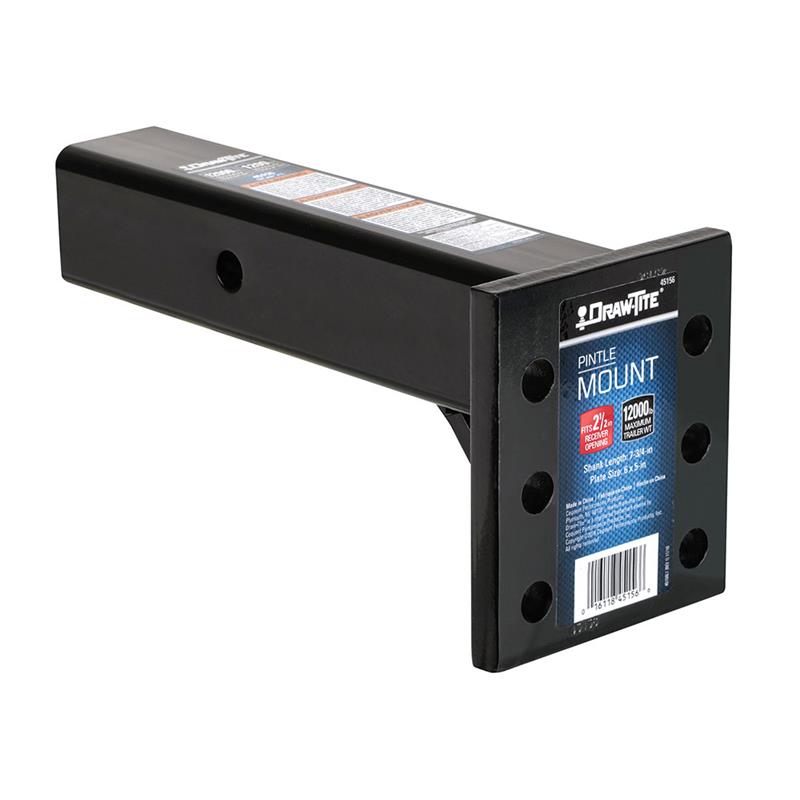

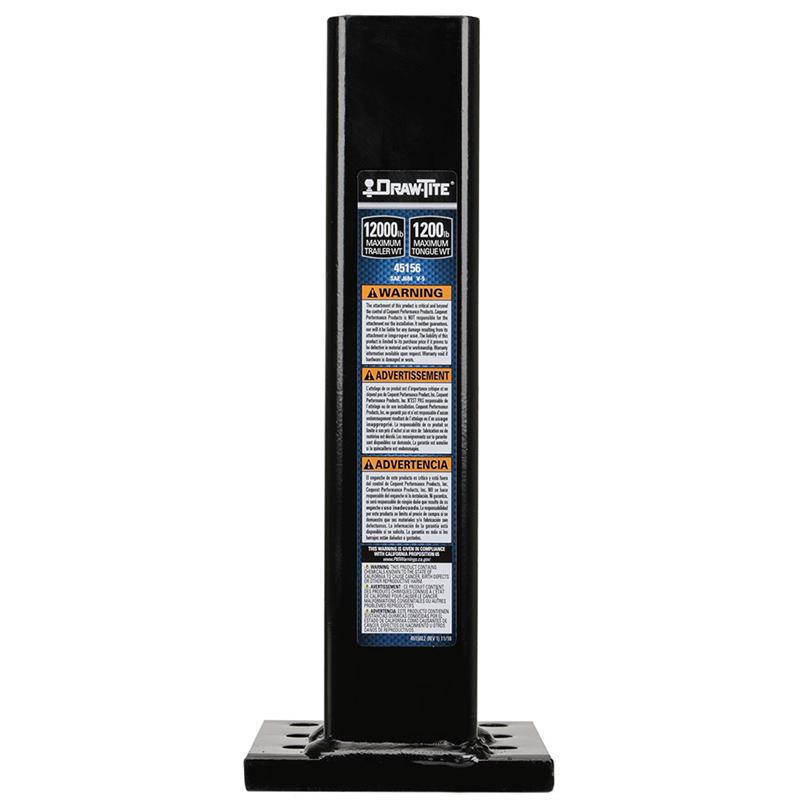

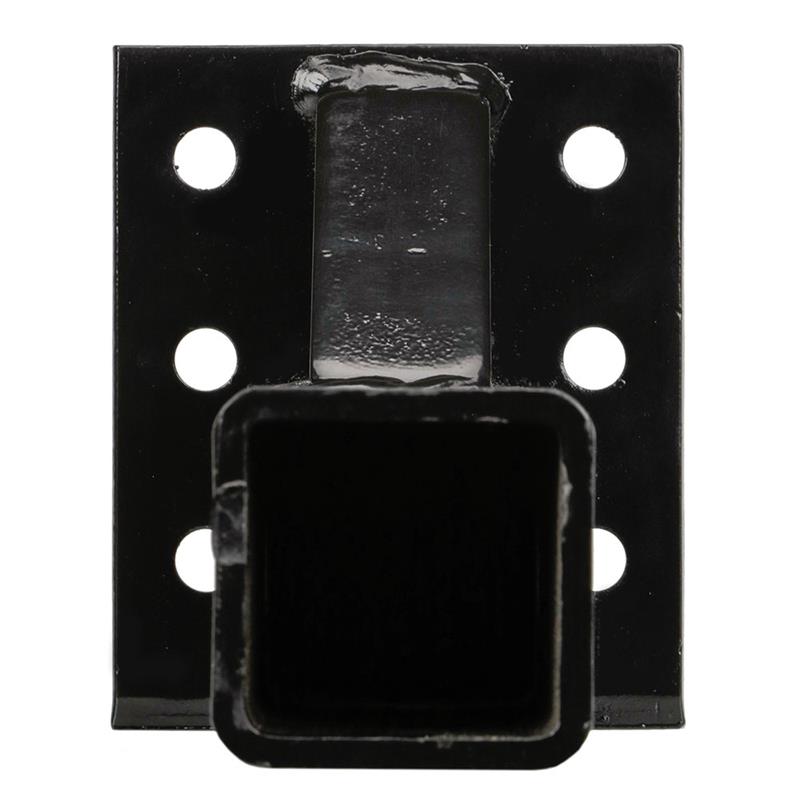

Pintle Hook Mounting Plate, 2-1/2" Sq. Hollow, 12K GTW, 3 Hole Sets (45156)
Pintle Hook Mount Plate, 7-3/4" Length w/ 3 Hole sets 12,000 Lbs. GTW
Product Description
The REESE titan receiver pintle hook mounting plate is designed to fit exclusively with titan receivers that have a 2-1/2 In. x 2-1/2 In. hitch box opening. The mount hole spacing is 3-3/8 In. left to right and 1-3/4 In. top to bottom.
- Converts receivers for use with pintle-type trailers, quickly and easily
- Provides mounting for both ball and pintle and rigid type pintle hooks
- Pin and clip must be ordered separately
| BRAND: |
DRAW-TITE |
| PART NUMBER: |
45156 |
| WARRANTY: |
LIMITED LIFETIME WARRANTY |
| UPC: |
016118451566 |
| DIMENSIONS: |
5" X 6" X 12.5" (SHIPPING) |
| FINISH: |
BLACK POWDER COAT |
| WEIGHT: |
11.25 LBS |
| TONGUE WEIGHT: |
1,200 LBS. |
| CAPACITY: |
12,000 LBS. |
| RECEIVER SIZE: |
2.5 IN. |
| PLATE SIZE: |
6 X 5 IN. |
| DRAW BAR MAXIMUM LENGTH: |
7.75 IN. |
| COLOR: |
BLACK |
| BALL CAPACITY: |
N/A |
| BALL DIAMETER: |
N/A |
| HOOK CAPACITY: |
N/A |
| DRILLING REQUIRED: |
NO |
| MOUNTING HARDWARE INCLUDED: |
NO |
| CLASSIFICATION: |
PINTLE HOOK MOUNT |
| ATTACHMENT LOCATION: |
RECEIVER HITCH |
| MOUNTING TYPE: |
RECEIVER HITCH |
| MATERIAL: |
STEEL |
| RECEIVER INCLUDED: |
YES |
| LENGTH: |
7-3/4 IN. |
| DROP: |
6 IN. |
| RISE: |
5 IN. |
| HOLE SIZE: |
3 IN. |
|
|
