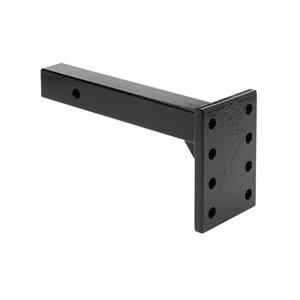

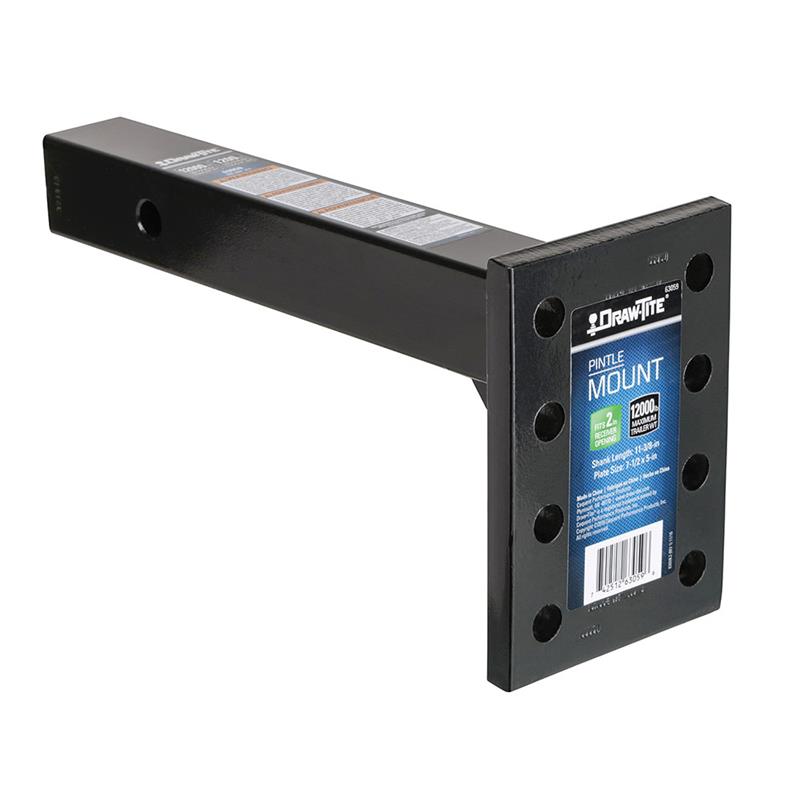

Pintle Hook Mounting Plate, 2" Sq. Solid, 12K GTW, 4 Hole Sets (63059)
Pintle Hook Mount, 11-3/8" Length w/ 4 Holes sets 12,000 Lbs. GTW
Product Description
REESE Towpower pintle hook mounting plate allows for a pintle hook to be easily bolted-on. Most simply slide into a 2 In. receiver tube and secure with a pin and clip. Black powder coat finish provides a clean appearance, and prevents weathering.
- Converts receivers for use with pintle-type trailers, quickly and easily
- Provides mounting for both ball and pintle and rigid type pintle hooks
- Pin and clip must be ordered separately
| BRAND: |
DRAW-TITE |
| PART NUMBER: |
63059 |
| WARRANTY: |
LIMITED LIFETIME WARRANTY |
| UPC: |
742512630596 |
| DIMENSIONS: |
8.2" X 16.1" X 5.2" (SHIPPING) |
| FINISH: |
BLACK POWDER COAT |
| WEIGHT: |
24.05 LBS |
| TONGUE WEIGHT: |
1,200 LBS. |
| DRAW BAR MAXIMUM LENGTH: |
11.375 IN. |
| CAPACITY: |
12,000 LBS. |
| RECEIVER SIZE: |
2 IN. |
| PLATE SIZE: |
7.5 IN X 5 IN. |
| COLOR: |
BLACK |
| BALL CAPACITY: |
N/A |
| BALL DIAMETER: |
N/A |
| HOOK CAPACITY: |
N/A |
| DRILLING REQUIRED: |
NO |
| CLASSIFICATION: |
PINTLE HOOK MOUNTING PLATE |
| ATTACHMENT LOCATION: |
RECEIVER HITCH |
| MOUNTING TYPE: |
RECEIVER HITCH |
| MATERIAL: |
STEEL |
| MOUNTING HARDWARE INCLUDED: |
YES |
| RECEIVER INCLUDED: |
YES |

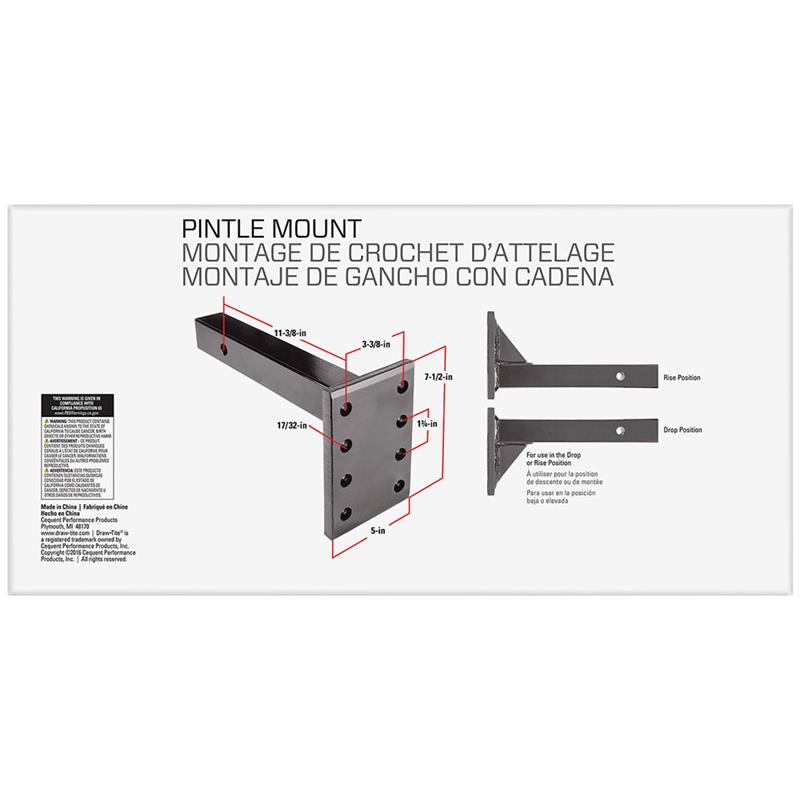

| LENGTH: |
11-3/8 IN. |
| DROP: |
7-1/2 IN. |
| RISE: |
5 IN. |
| HOLE SIZE: |
4 IN. |
|
|
