AL88K Pintle Chain 10' Reel (AL88K)
Product Description

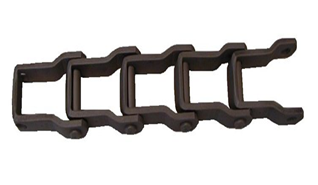

88K Pintle Chain 10' Reel, Riveted

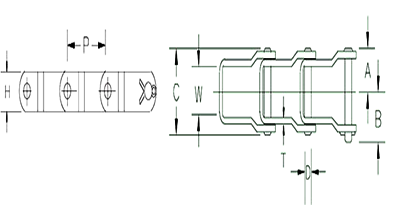

Pitch (P): 2.609
Overall Width (C): 2.125
Inside Width (W): 1.078
Pin Diameter (D): 0.437
Height (H): 1.062
Thickness (T): 0.200
Connector Length (A): 1.090
Connector Length (B): 1.270
Min. Avg Tensil Strength: 20,000 lbs.
Links Per 10': 46
Weight Per 10': 23 lbs.
Associated Items:
AL88KCL Connector Link
|
|
