Product Description

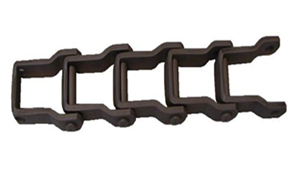

662 Pintle Chain, 10' Reel Riveted

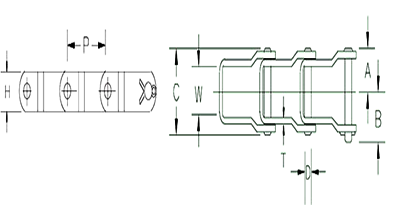

Pitch (P): 1.664
Overall Width (C): 1.625
Inside Width (W): 0.906
Pin Diameter (D): 0.281
Height (H): 0.720
Thickness (T): 0.125
Connector Length (A): 0.797
Connector Length (B): 0.883
Min. Avg Tensil Strength: 8,500 lbs.
Links Per 10': 10
Weight Per 10': 10.5 lbs.

Mfg. Peer Chain

Associated Items:
AL662CL Connector Link
