Product Description

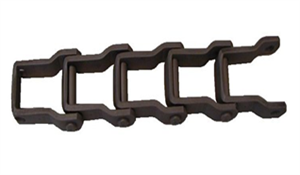

667X Pintle Chain 10' Reel, Riveted

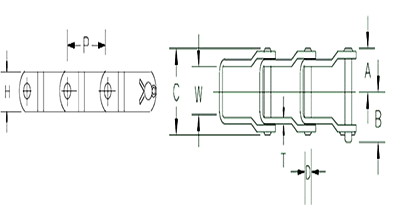

Pitch (P): 2.250
Overall Width (C): 1.953
Inside Width (W): 1.063
Pin Diameter (D): 0.437
Height (H): 0.937
Thickness (T): 0.170
Connector Length (A): 1.010
Connector Length (B): 1.140
Min. Avg Tensil Strength: 15,000 lbs.
Links Per 10': 53
Weight per 10': 18.6 lbs.

Mfg: Peer Chain

Associated Items:
AL667XCL Connector Link
