Product Description

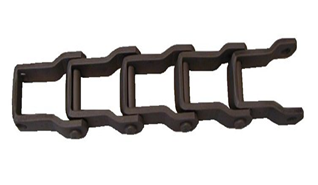

667XH Pintle Chain 10' Reel, Riveted

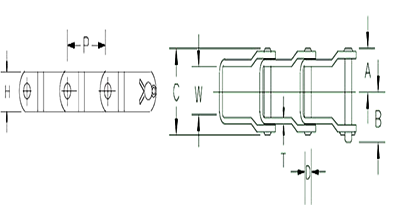

Pitch (P): 2.250
Overall Width (C): 2.313
Inside Width (W): 1.078
Pin Diameter (D): 0.469
Height (H): 1.062
Thickness (T): 0.224
Connector Length (A): 1.200
Connector Length (B): 1.340
Min. Avg Tensil Strength: 26,000 lbs.
Links Per 10': 53
Weight Per 10': 28 lbs.

Mfg: Peer Chain

Associated Items:
AL667XHCL Connector Link
