Product Description

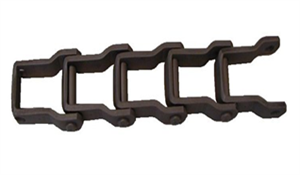

88XH Pintle Chain 10' Reel, Riveted

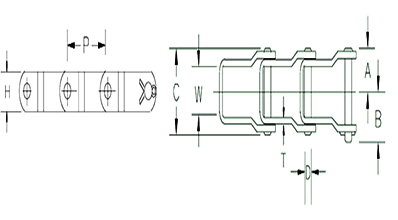

Pitch (P): 2.609
Overall Width (C): 2.641
Inside Width (W): 1.250
Pin Diameter (D): 0.500
Height (H): 1.125
Thickness (T): 0.250
Connector Length (A): 1.350
Connector Length (B): 1.520
Min. Avg Tensil Strength: 30,000 lbs.
Links Per 10': 46
Weight Per 10': 33.2 lbs.

Mfg: Peer Chain

Associated Items:
AL88XHCL Connector Link
