Product Description

Size: 1 Series Metric (Bondioli & Pavesi)

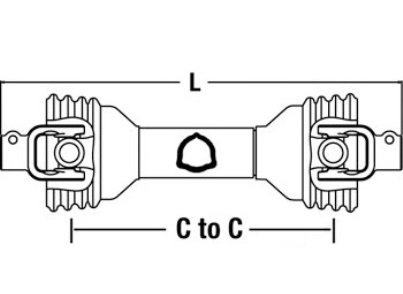

Min c-to-c Length: 21" / 514mm
Max c-toc Length: 29" / 750mm
Total Collapsed Length: 27" / 700mm
Tractor: 1-3/8"-6 Spl.
Implement: 1-3/8"-6 Spl.
Series: 100
Category: 1 (16 HP)

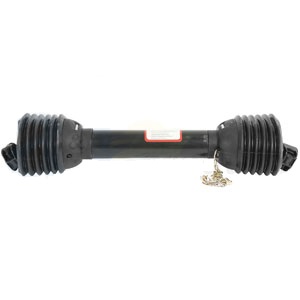

100 Series Driveline with Quick Disconnect Yokes (1-3/8" 6 Spline). Driveline minimum C-to-C is 21" (514 mm), maximum C-to-C length is 29" (750mm), total collapsed length is 27" (700 mm). Tractor and implement ends are 1-3/8" 6 splines. Driveline rated as category 1 (16 hp).
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
