Product Description

Size: 4 Series Metric (Bondioli & Pavesi)
Min c-to-c Length: 25" / 635mm
Max c-toc Length: 35" / 900mm
Total Collapsed Length: 33" / 850mm
Tractor: 1-3/8"-6 Spl.
Implement: 1-3/8"-6 Spl.
Series: 100
Category: 3 (35 HP)

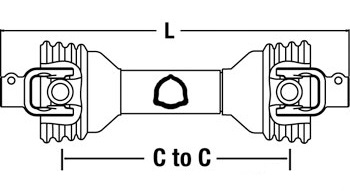

Driveline C-to-C length: 25" (635 mm), Max C-to-C length: 35" (900 mm), Total collapsed length: 33" (850 mm). Tractor end: 1-3/8" 6 spline, Implement end: 1-3/8" 6 spline.
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
