Product Description

Size: 4 Series Metric (Bondioli & Pavesi)

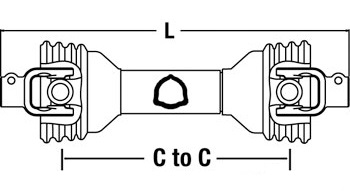

Min c-to-c Length: 40" / 1010mm
Max c-toc Length: 62" / 1580mm
Total Collapsed Length: 48" / 1230mm
Tractor: 1-3/8"-6 Spl.
Implement: 1-1/2" Round Bore w/ 3/8" Keyway
Series: 100
Category: 3 (35 HP)

Driveline minimum C-to-C is 40" (1010 mm), maximum C-to-C length is 62" (1580 mm), total collapsed length is 48" (1230 mm). Tractor ends: 1-3/8" 6 Spline and implement ends are 1-1/2" round bore with 3/8" keyway. Driveline rated as category 3 (35 hp).
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
