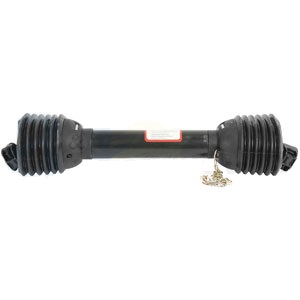

Product Description

Size: 4 Series Metric (Bondioli & Pavesi)

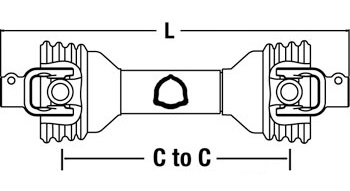

Min c-to-c Length: 41" / 1035mm
Max c-toc Length: 62" / 1560mm
Total Collapsed Length: 48" / 1230mm
Tractor: 1-3/8"-6 Spl.
Implement: 1-3/8" Round Bore w/ 3/8" Pin Hole For Shear Pin
Series: 100
Category: 3 (35 HP)

Driveline minimum C-to-C length: 41" (1035 mm), Maximum C-to-C length: 62" (1560 mm), Total collapsed length: 48" (1230 mm). Tractor end: 1-3/8" 6 spline, Implement end: 1-3/8" Round with 1/2" pin hole. Driveline rated as category 3 (35 hp), size 4.
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
