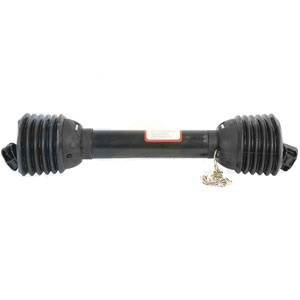

Product Description

Size: 4 Series Metric (Bondioli & Pavesi)
Min c-to-c Length: 45" / 1145mm
Max c-toc Length: 71" / 1800mm
Total Collapsed Length: 53" / 1345mm
Tractor: 1-3/8"-6 Spl.
Implement: 1-1/4" Round Bore w/ 3/8" Pin Hole For Shear Bolt
Series: 100
Category: 3 (35 HP)

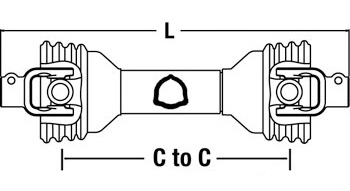

Driveline minimum C-to-C is 45" (1145 mm), maximum C-to-C length is 71" (1800 mm), total collapsed length is 53" (1345 mm). Tractor ends: 1-3/8" 6 Spline and implement ends are 1-1/4" round bore with 3/8" pin hole. Driveline rated as category 3 (35 hp).
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
