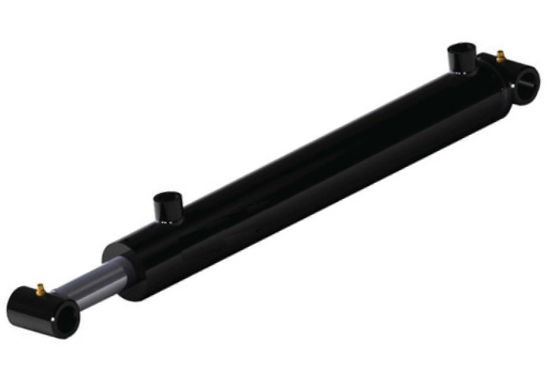

1-1/2" x 4" Welded Bushing Cylinder, 1" Rod (HBU-1504)
1" Rod with 1/4" SAE O-Ring ports. 3/4" Pin Hole
Product Description
Features:
- Top grade North American seals
- Ductile iron with 1045 steel casting
- Automated welding of ports provides higher quality, strength, and appearence
- Induction hardend chrome plated rods
- Cross tube end welded with a positioner
- Special snap in type wiper seals to prevent exterior contamination.
- Molded ribs provide extra stability to the seal and help prevent pressure trapping
Bore: 1-1/2" Stroke: 4" Rod Diameter: 1" Pin Diameter: 3/4" Ports: 1/4" SAE-ORB Pin Center Retracted: 12" Pin Center Extended: 16" Pressure Rating: 3,000 PSI Color: Black Weight: 8 lbs.

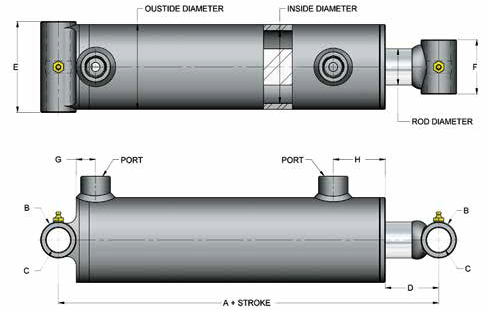

Diagram Dimensions: Inside Diameter: 1.50" Outside Diameter: 2.00" A: 8.00 B: 1.25 C: 0.76 D: 2.62 E: 2.25 F: 2.00 G: 1.06 H: 1.87
*Please Call For Dealer/OEM Pricing.
|
|
