1-1/2" x 8" Welded Bushing Cylinder, 1" Rod (HBU-1508)
1" Rod with 1/4" SAE O-Ring ports. 3/4" Pin Hole
Product Description
Features:
- Top grade North American seals
- Ductile iron with 1045 steel casting
- Automated welding of ports provides higher quality, strength, and appearence
- Induction hardend chrome plated rods
- Cross tube end welded with a positioner
- Special snap in type wiper seals to prevent exterior contamination.
- Molded ribs provide extra stability to the seal and help prevent pressure trapping
Bore: 1-1/2"
Stroke: 8"
Rod Diameter: 1"
Pin Diameter: 3/4"
Ports: 1/4" SAE-ORB
Pin Center Retracted: 16"
Pin Center Extended: 24"
Pressure Rating: 3,000 PSI
Color: Black
Weight: 10 lbs.

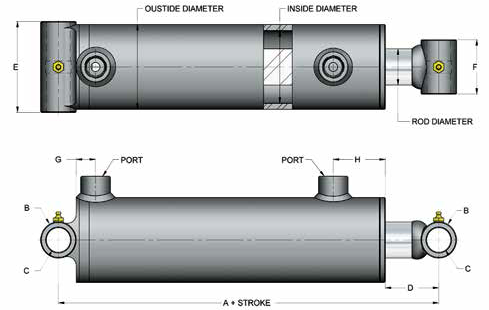

Diagram Dimensions:
Inside Diameter: 1.50"
Outside Diameter: 2.00"
A: 8.00
B: 1.25
C: 0.76
D: 2.62
E: 2.25
F: 2.00
G: 1.06
H: 1.87
*Please Call For Dealer/OEM Pricing.
|
|
