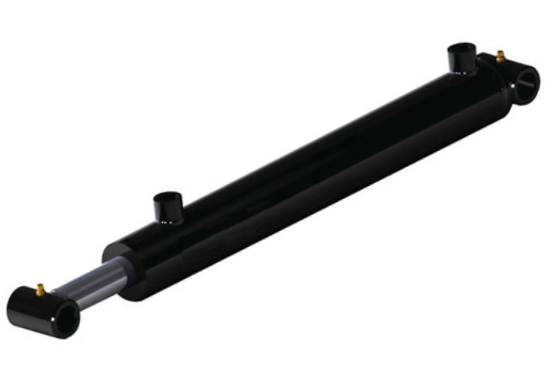

Product Description

• Top grade North American seals
• Ductile iron with 1045 steel casting
• Automated welding of ports provides higher quality, strength, and appearence
• Induction hardend chrome plated rods
• Cross tube end welded with a positioner
• Special snap in type wiper seals to prevent exterior contamination.
• Molded ribs provide extra stability to the seal and help prevent pressure trapping

Bore: 2"
Stroke: 8"
Rod Diameter: 1-1/4"
Pin Diameter: 1"
Ports: 3/8" SAE-ORB
Pin Center Retracted: 16"
Pin Center Extended: 24"
Pressure Rating: 3,000 PSI
Color: Black
Weight: 15 lbs.

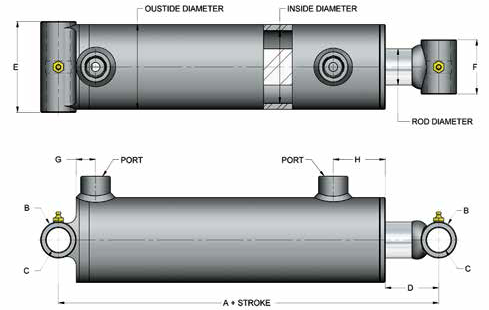

Diagram Dimensions:
Inside Diameter: 2.00"
Outside Diameter: 2.50"
A: 8.00
B: 1.50
C: 1.01
D: 2.25
E: 2.75
F: 2.25
G: 1.00
H: 2.06


*Please Call For Dealer/OEM Pricing.
