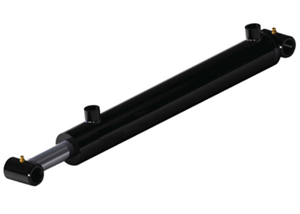

3" x 20" Welded Bushing Cylinder, 1-1/2" Rod (HBU-3020)
1-1/2" Rod with 1/2" SAE O-Ring ports. 1" Pin Hole
Product Description
Features:
- Top grade North American seals
- Ductile iron with 1045 steel casting
- Automated welding of ports provides higher quality, strength, and appearence
- Induction hardend chrome plated rods
- Cross tube end welded with a positioner
- Special snap in type wiper seals to prevent exterior contamination.
- Molded ribs provide extra stability to the seal and help prevent pressure trapping
Bore: 3"
Stroke: 20"
Rod Diameter: 1-1/2"
Pin Diameter: 1"
Ports: 1/2" SAE-ORB
Pin Center Retracted: 28"
Pin Center Extended: 48"
Pressure Rating: 3,000 PSI
Color: Black
Weight: 39 lbs.

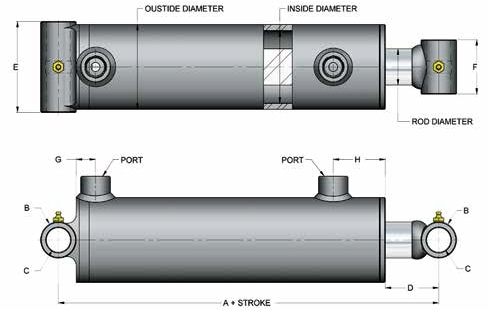

Diagram Dimensions:
Inside Diameter: 3.00"
Outside Diameter: 3.50"
A: 8.00
B: 1.50
C: 1.01
D: 2.25
E: 3.25
F: 2.25
G: 0.81
H: 2.18
*Please Call For Dealer/OEM Pricing.
|
|
