3-1/2" x 12" Welded Bushing Cylinder, 1-3/4" Rod (HBU-3512)
1-3/4" Rod with 1/2" SAE O-Ring ports. 1-1/4" Pin Hole
Product Description
Features:
- Top grade North American seals
- Ductile iron with 1045 steel casting
- Automated welding of ports provides higher quality, strength, and appearence
- Induction hardend chrome plated rods
- Cross tube end welded with a positioner
- Special snap in type wiper seals to prevent exterior contamination.
- Molded ribs provide extra stability to the seal and help prevent pressure trapping
Bore: 3-1/2"
Stroke: 12"
Rod Diameter: 1-3/4"
Pin Diameter: 1-1/4"
Ports: 1/2" SAE-ORB
Pin Center Retracted: 22"
Pin Center Extended: 34"
Pressure Rating: 3,000 PSI
Color: Black
Weight: 39 lbs.

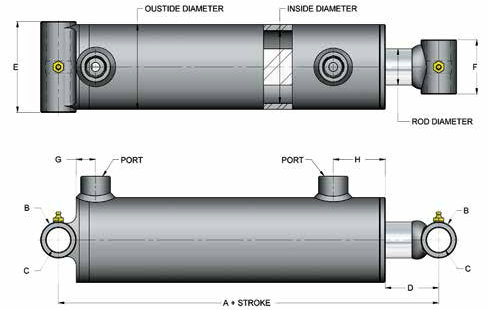

Diagram Dimensions:
Inside Diameter: 3.50"
Outside Diameter: 4.00"
A: 10.00
B: 2.00
C: 1.26
D: 4.00
E: 4.25
F: 2.25
G: 0.81
H: 2.18
*Please Call For Dealer/OEM Pricing.
|
|
