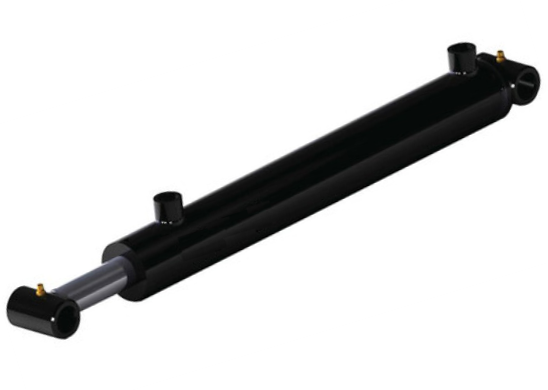

Product Description

• Top grade North American seals
• Ductile iron with 1045 steel casting
• Automated welding of ports provides higher quality, strength, and appearence
• Induction hardend chrome plated rods
• Cross tube end welded with a positioner
• Special snap in type wiper seals to prevent exterior contamination.
• Molded ribs provide extra stability to the seal and help prevent pressure trapping

Bore: 3-1/2"
Stroke: 30"
Rod Diameter: 1-3/4"
Pin Diameter: 1-1/4"
Ports: 1/2" SAE-ORB
Pin Center Retracted: 40"
Pin Center Extended: 70"
Pressure Rating: 3,000 PSI
Color: Black
Weight: 66 lbs.


Diagram Dimensions:
Inside Diameter: 3.50"
Outside Diameter: 4.00"
A: 10.00
B: 2.00
C: 1.26
D: 4.00
E: 4.25
F: 2.25
G: 0.81
H: 2.18


*Please Call For Dealer/OEM Pricing.
