Product Description

• Top grade North American seals
• Ductile iron with 1045 steel casting
• Automated welding of ports provides higher quality, strength, and appearence
• Induction hardend chrome plated rods
• Cross tube end welded with a positioner
• Special snap in type wiper seals to prevent exterior contamination.
• Molded ribs provide extra stability to the seal and help prevent pressure trapping

Bore: 4"
Stroke: 18"
Rod Diameter: 2"
Pin Diameter: 1-1/2"
Ports: 1/2" SAE-ORB
Pin Center Retracted: 28"
Pin Center Extended: 46"
Pressure Rating: 3,000 PSI
Color: Black
Weight: 59 lbs.

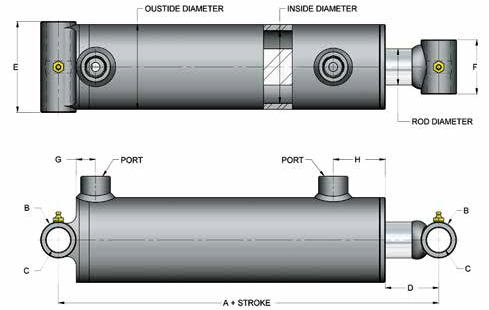

Diagram Dimensions:
Inside Diameter: 4.00"
Outside Diameter: 4.50"
A: 10.00
B: 2.25
C: 1.51
D: 3.75
E: 4.75
F: 2.50
G: 0.81
H: 2.18


*Please Call For Dealer/OEM Pricing.
