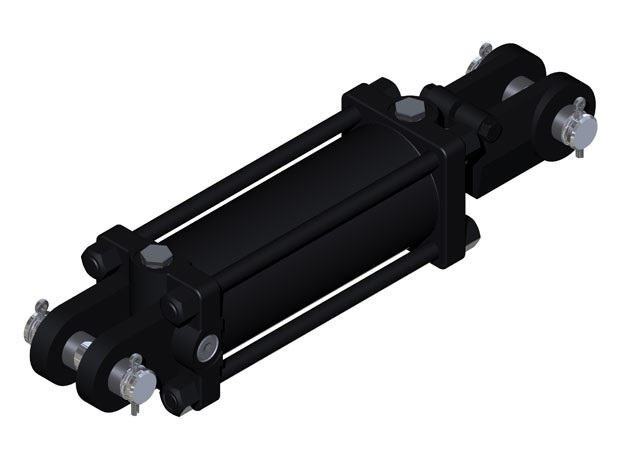

Product Description

Features:

• Ductile iron piston
• Ductile iron gland, drilled oil passages
• Honed steel tube, precision finished for extended seal life
• High tensile, hard chrome plated rod
• Ductile iron end mounts, female devises with pins and clips included
• Tube seal: O-ring
• Rod Seal: Deep polypak with B lip design; metal canned wiper
• 2-Piece 93A urethane piston seal, with a 70A nitrile energizer
• All Seals: Manufactured to US specifications

Bore: 3"
Stroke: 20"
Rod Diameter: 1-1/4"
Pin Diameter: 1"
Tube OD: 3.375"
Ports: 1/2" SAE
Pin Center Retracted: 30-1/4"
Pin Center Extended: 50-1/4
Manufacturer: Import
Color: Black
Weight: 48 lbs.


Diagram Dimensions:

Inside Diameter: 3.00
Outside Diameter: 3.37
A: 10.25
B: 2.00
C: 1.01
D: 2.25
E: 3.75
F: 2.50
G: 1.12
H: 2.06
I: 2.12
J: 2.62


*Please Call For Dealer/OEM Pricing.
