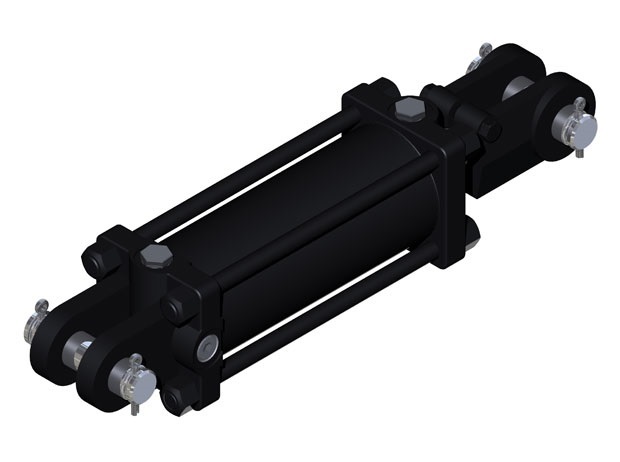

4" x 10" Tie Rod Cylinder 1-3/4" Rod 3,000PSI (HTR3-4010)
Closed 20-1/4", Extended 30-1/4". 1" Pins
Product Description
Features:
- Ductile iron piston
- Ductile iron gland, drilled oil passages
- Honed steel tube, precision finished for extended seal life
- High tensile, hard chrome plated rod
- Ductile iron end mounts, female devises with pins and clips included
- Tube seal: O-ring
- Rod Seal: Deep polypak with B lip design; metal canned wiper
- 2-Piece 93A urethane piston seal, with a 70A nitrile energizer
- All Seals: Manufactured to US specifications
Bore: 4" Stroke: 10" Rod Diameter: 1-3/4" Pin Diameter: 1" Tube OD: 4.375" Ports: 1/2" SAE Pin Center Retracted: 20-1/4" Pin Center Extended: 30-1/4" Pressure Rating: 3,000 PSI Rated Pressure, 6,000 PSI Testing PressureManufacturer: Import Color: Black Weight: 52 lbs. Diagram Dimensions:
Inside Diameter: 4.00 Outside Diameter: 4.37 A: 10.25 B: 2.25 C: 1.01 D: 2.25 E: 3.56 F: 2.62 G: 1.12 H: 2.06 I: 2.12 J: 2.62 *Please Call For Dealer/OEM Pricing.
|
|
