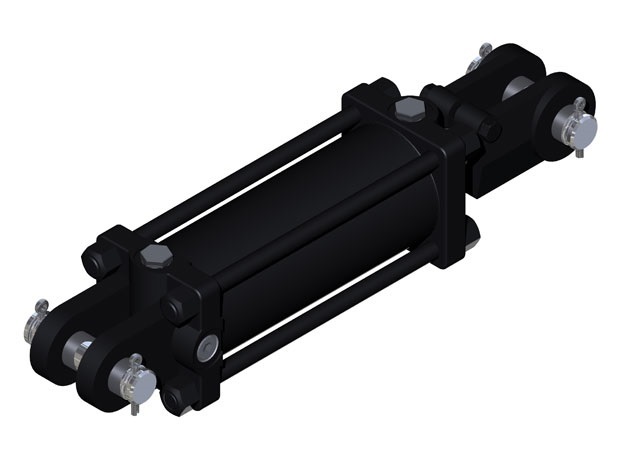

4" x 24" Tie Rod Cylinder, 1-1/2" Rod (HTR-4024)
Closed 34-1/4", Extended 58-1/4". 1" Pins
Product Description
Features:
- Ductile iron piston
- Ductile iron gland, drilled oil passages
- Honed steel tube, precision finished for extended seal life
- High tensile, hard chrome plated rod
- Ductile iron end mounts, female devises with pins and clips included
- Tube seal: O-ring
- Rod Seal: Deep polypak with B lip design; metal canned wiper
- 2-Piece 93A urethane piston seal, with a 70A nitrile energizer
- All Seals: Manufactured to US specifications
Bore: 4" Stroke: 24" Rod Diameter: 1-1/4" Pin Diameter: 1" Tube OD: 4.375" Ports: 1/2" NPT Pin Center Retracted: 34-1/4" Pin Center Extended: 58-1/4" Manufacturer: Import Color: Black Weight: 64 lbs. Diagram Dimensions:
Inside Diameter: 4.00 Outside Diameter: 4.37 A: 10.25 B: 2.25 C: 1.01 D: 2.25 E: 3.56 F: 2.62 G: 1.12 H: 2.06 I: 2.12 J: 2.62 *Please Call For Dealer/OEM Pricing.
|
|
