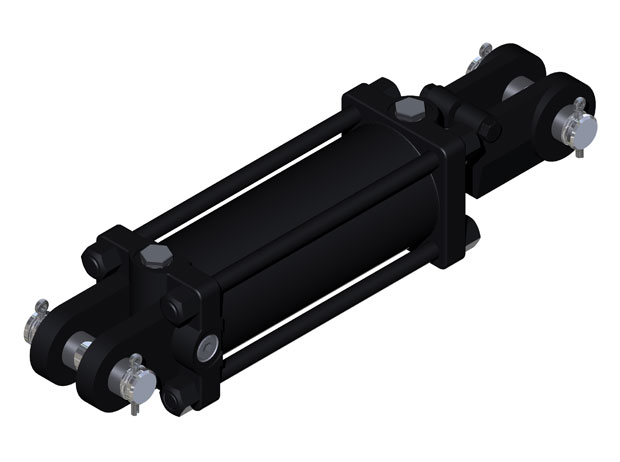

5" x 6" Tie Rod Cylinder 1-1/2" Rod 2,500PSI (HTR-5006)
5" x 6" Tie Rod Cylinder, 1-1/2" Rod
Product Description
Features:
- Ductile iron piston
- Ductile iron gland, drilled oil passages
- Honed steel tube, precision finished for extended seal life
- High tensile, hard chrome plated rod
- Ductile iron end mounts, female devises with pins and clips included
- Tube seal: O-ring
- Rod Seal: Deep polypak with B lip design; metal canned wiper
- 2-Piece 93A urethane piston seal, with a 70A nitrile energizer
- All Seals: Manufactured to US specifications

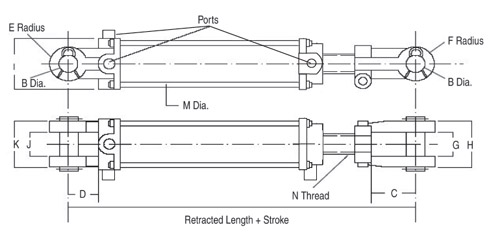

Bore: 5" Stroke: 6" Rod Diameter: 1-1/2" Pin Diameter: 1" Tube OD: 5.453" Ports: 1/2" NPTF Pin Center Retracted: 18.25" Pressure Rating: 2,000 PSI Manufacturer: Import Color: Black Diagram Dimensions:
B: 1.015" C: 2.125" D: 2.250" E: 1.250" F: 1.500" G=J: 1.260"
|
|
