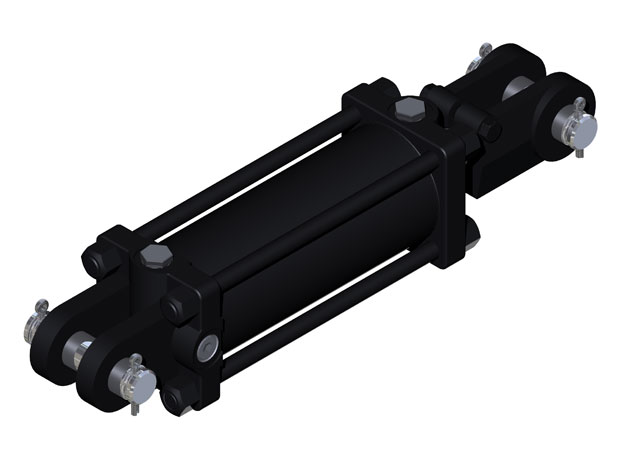

5" x 20" Tie Rod Cylinder 2" Rod 2,500PSI (HTR-5020)
5" x 20" Tie Rod Cylinder, 2" Rod
PLEASE CALL FOR AVAILABILITY
Product Description
Features:
- Ductile iron piston
- Ductile iron gland, drilled oil passages
- Honed steel tube, precision finished for extended seal life
- High tensile, hard chrome plated rod
- Ductile iron end mounts, female devises with pins and clips included
- Tube seal: O-ring
- Rod Seal: Deep polypak with B lip design; metal canned wiper
- 2-Piece 93A urethane piston seal, with a 70A nitrile energizer
- All Seals: Manufactured to US specifications
Bore: 5"
Stroke: 20"
Rod Diameter: 2"
Pin Diameter: 1"
Tube OD: 5.453"
Ports: 1/2" NPTF
Pin Center Retracted: 32.25"
Pressure Rating: 2,000 PSI
Manufacturer: Import
Color: Black

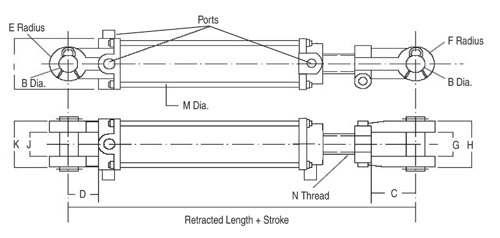

Diagram Dimensions:
B: 1.015"
C: 2.125"
D: 2.250"
E: 1.250"
F: 1.500"
G=J: 1.260"
|
|
